Why Direct Vent Water Heaters Are the Smart Choice for Modern Homes
A direct vent water heater draws combustion air from outside your home rather than using indoor air, then vents exhaust gases back outdoors through a special coaxial pipe system. This design eliminates backdrafting risks and makes them ideal for homes without chimneys or adequate indoor ventilation.
Key advantages of direct vent water heaters:
- Safety first - Sealed combustion eliminates backdrafting and indoor air quality concerns
- Installation flexibility - No chimney required, vents horizontally through exterior walls
- Quiet operation - No electric fans or blowers needed
- Perfect for tight spaces - Ideal for closets, basements, and modern energy-efficient homes
- Fuel options - Available for both natural gas and propane
Best for: Homes without existing chimneys, finished basements, closet installations, or anywhere indoor air quality is a priority.
If you're dealing with an aging water heater in a challenging installation space, or you're concerned about safety and indoor air quality, a direct vent system might be exactly what your home needs. These units operate quietly without external power and can be installed in locations where traditional atmospheric venting simply won't work.
The sealed combustion chamber design means you won't have to worry about downdrafts affecting your pilot light or combustion gases entering your living space - a common problem with older venting systems.

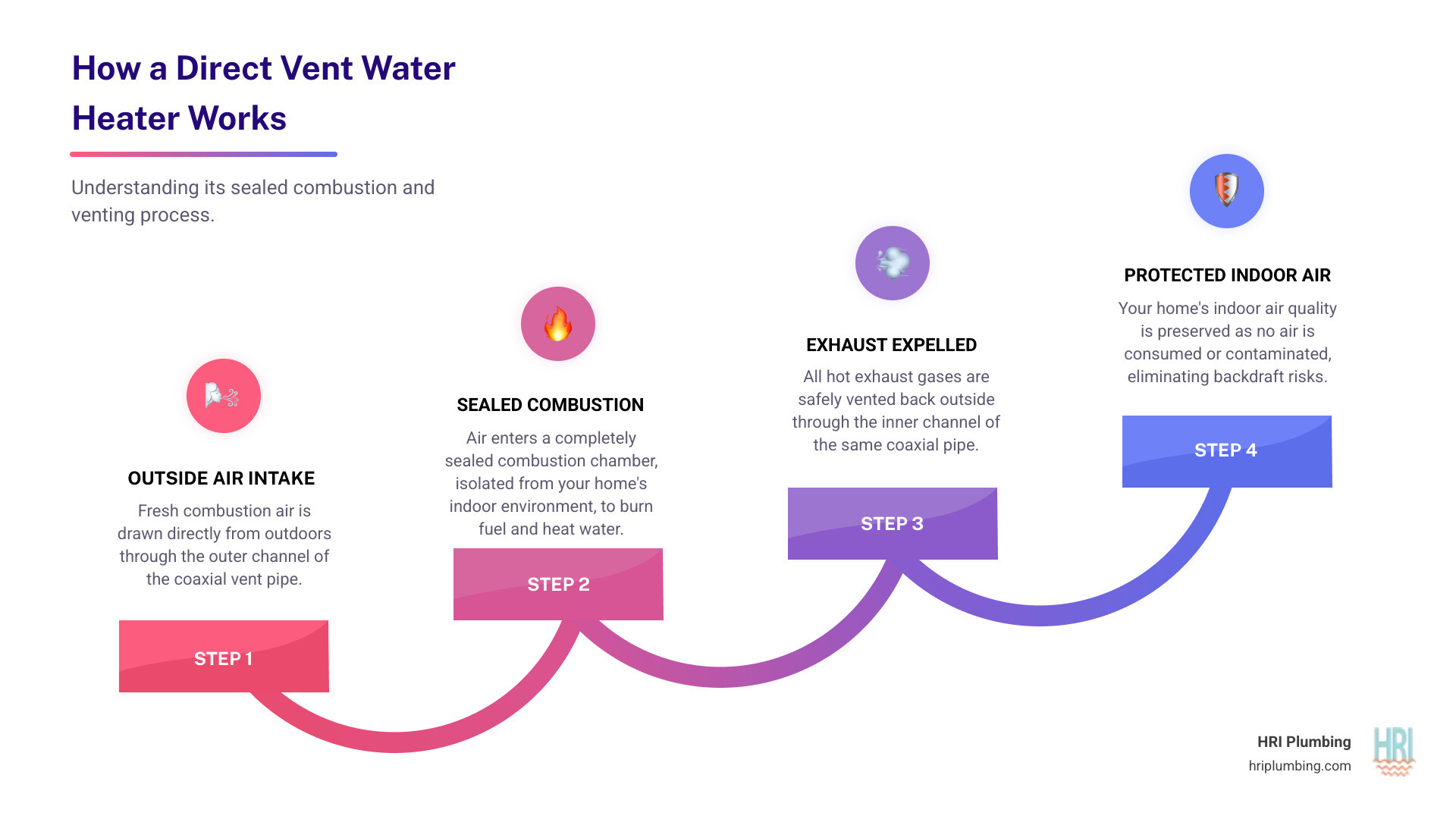

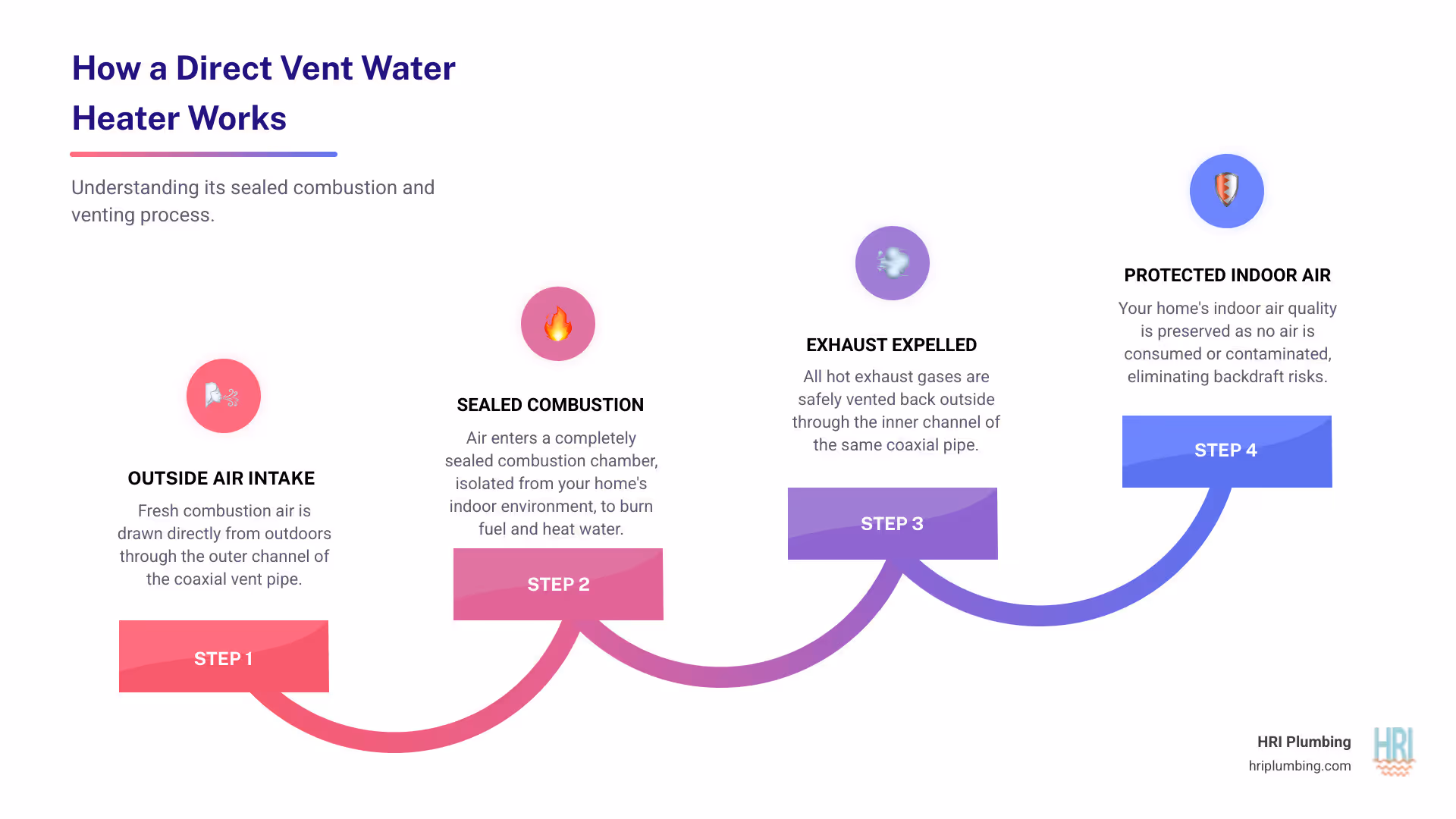

What is a Direct Vent Water Heater and How Does It Work?
Think of your direct vent water heater as having its own personal breathing system - completely separate from your home's air. While traditional water heaters gulp down your indoor air and send exhaust up through a chimney, a direct vent system operates in its own sealed world.
The magic happens inside a sealed combustion chamber that's completely cut off from your living space. Instead of stealing the warm air you've already paid to heat (or cool), this clever system reaches outside for all the air it needs. Fresh outdoor air travels through a special pipe, feeds the burner, and then the exhaust gases take their own separate route back outside.

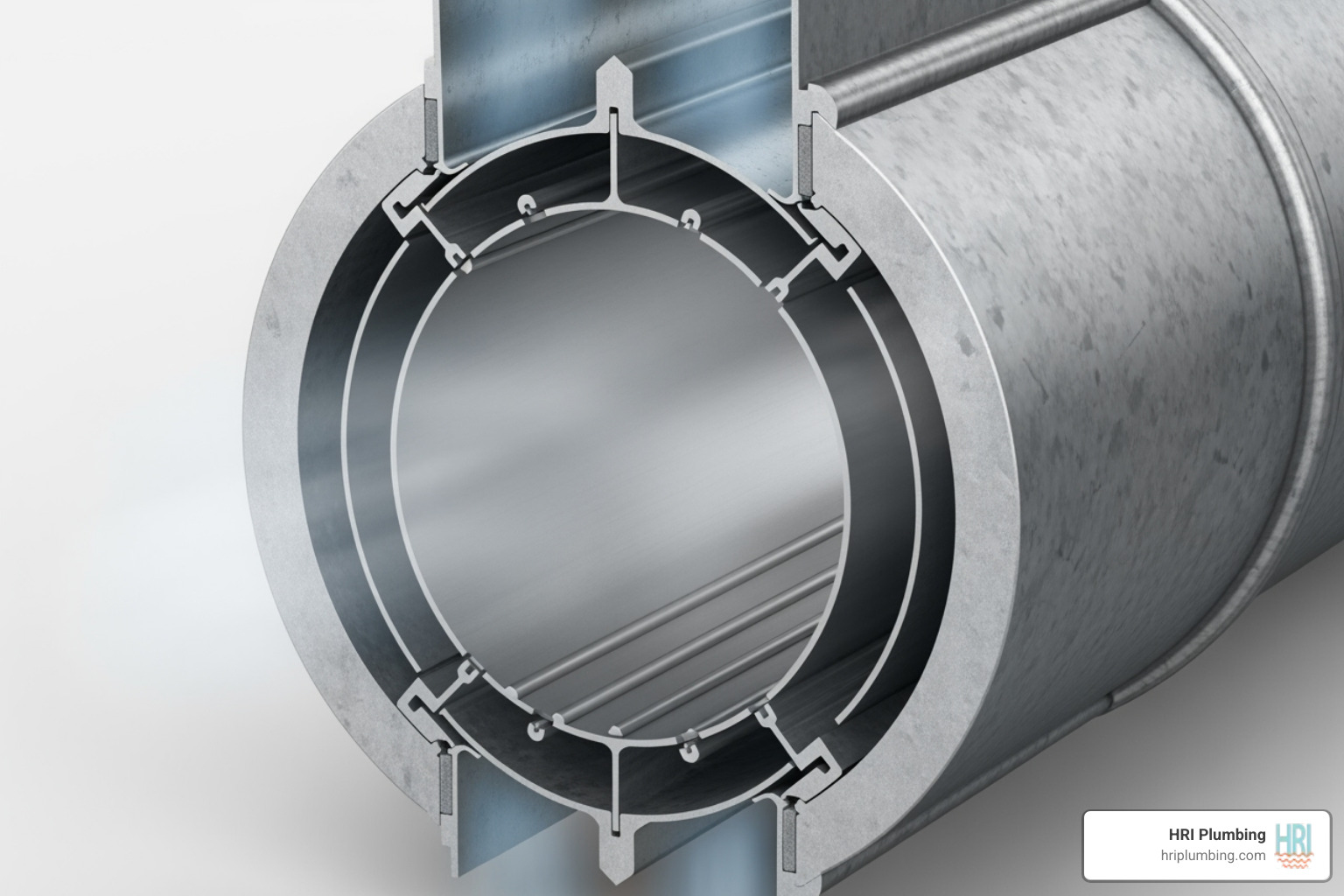

What makes this possible is the ingenious coaxial vent pipe - essentially a pipe within a pipe. Picture a straw inside a larger straw. The outer channel brings in fresh combustion air from outside, while the inner channel carries out the exhaust gases. It's like having a two-way highway that keeps incoming and outgoing traffic completely separate.
This design eliminates one of the biggest safety concerns with older water heaters: backdrafting. When wind conditions or poor ventilation cause exhaust gases to flow back into your home, it can create dangerous situations. With a direct vent system, there's simply no way for combustion byproducts to enter your living space.
The beauty extends beyond safety. Since many models don't need electric fans or blowers, they operate whisper-quiet. You get all the hot water you need without the mechanical noise that can come with other venting systems.
Direct Vent vs. Other Common Venting Systems
Not all water heaters handle venting the same way, and understanding the differences can help you make the right choice for your home. Let's break down how a direct vent water heater stacks up against its cousins.
Atmospheric vent water heaters are the old-school option. They pull combustion air from inside your home and rely on natural draft to push exhaust gases up through a chimney or vent pipe. While they're often less expensive upfront, they consume your indoor air and depend on proper chimney draft to work safely. If your home is tightly sealed or you don't have adequate ventilation, backdrafting becomes a real concern.
Power vent water heaters also use indoor air for combustion, but they've got an electric fan to forcefully push exhaust gases outside through a horizontal vent. This makes them more flexible for installation since they don't need a vertical chimney. However, they require electricity to operate, can be noisy due to the fan, and still consume your indoor air.
Here's where the direct vent water heater shines: it draws combustion air from outside, vents exhaust back outside through that clever coaxial pipe system, requires no electricity for most models, eliminates backdrafting risk entirely, and offers incredible installation flexibility since it only needs access to an exterior wall.
The safety advantage is huge, especially for modern homes that are built tight for energy efficiency. When your house doesn't "breathe" much, using indoor air for combustion can create pressure imbalances and increase the risk of dangerous exhaust gases entering your living space. A direct vent system sidesteps this problem completely.
For homeowners in Springfield and the surrounding areas, where we see everything from older homes with existing chimneys to new construction without traditional venting, the flexibility of direct vent systems often makes them the smart choice. They work beautifully in basements, utility closets, or anywhere you can run that coaxial vent pipe to an exterior wall.
Key Benefits: Why Choose a Direct Vent System?
When homeowners ask us about water heater options, we always get excited talking about direct vent water heaters. These aren't just another appliance choice – they're a smart solution that addresses so many common headaches we see in homes around Jacksonville, Springfield, and Rushville.
The beauty of these systems lies in how they solve multiple problems at once. You get improved safety because they're designed to keep combustion completely separate from your indoor air. There's incredible installation flexibility since you don't need a chimney. They operate with quiet operation that won't wake you up at night. And for homeowners watching their energy bills, they offer solid energy efficiency that can help keep costs down.
If your home doesn't have a traditional chimney, or if you're dealing with air quality concerns in a tightly sealed modern home, a direct vent water heater might be exactly what you need.
Best Safety and Indoor Air Quality
Here's where direct vent water heaters really earn their keep – safety. The sealed combustion design means the flame heating your water lives in its own little world, completely cut off from the air you and your family breathe.
Think of it this way: your old water heater might be stealing air from your basement or utility room to burn gas, then trying to push those exhaust gases up a chimney. But what if your bathroom fan or dryer creates negative pressure? Those harmful gases could get pulled back into your home instead of going outside where they belong.
With a direct vent system, that backdrafting risk simply disappears. The unit gets all its combustion air from outside and sends all exhaust back outside through that clever coaxial pipe we talked about earlier. No consumption of indoor air means cleaner air for your family.
This design is so reliable that many models don't even need a flammable vapor sensor. For homes built tight for energy efficiency – where indoor air doesn't exchange much with outdoor air – this sealed system is practically essential. You get peace of mind knowing your water heater isn't compromising your indoor air quality.
Want to see the technical details? View a technical spec sheet for a typical model to understand exactly how these safety features work.
Flexible Installation and Quiet Operation
One of our favorite things about direct vent water heaters is how they free us from the tyranny of the chimney. No chimney needed – that simple fact opens up installation possibilities that would make your old water heater jealous.

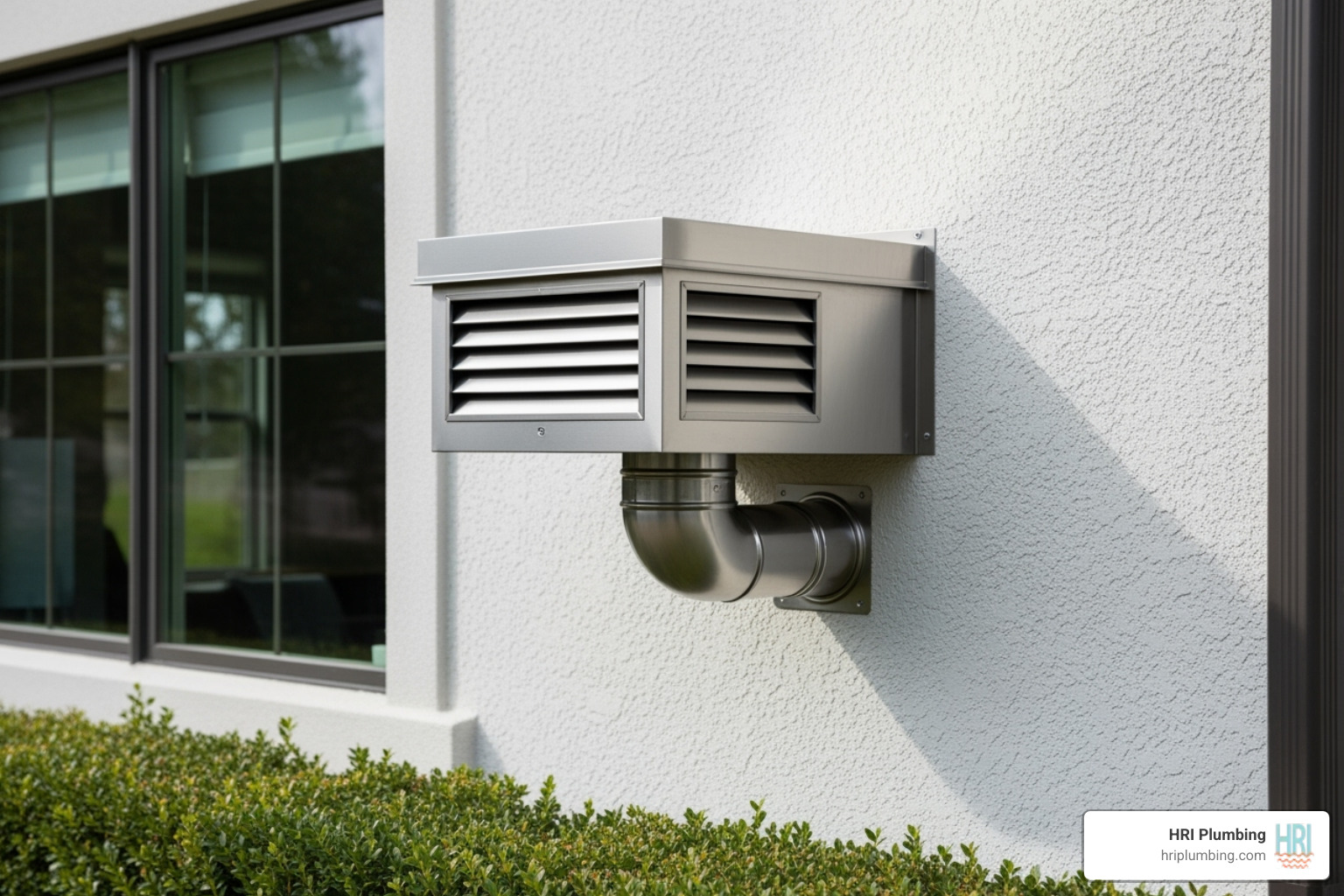

These units vent through an exterior wall using horizontal venting, which means we can place them almost anywhere that has access to an outside wall. That closet that seemed too cramped? Perfect. That basement corner that's nowhere near a chimney? No problem. Those tight spaces where a traditional unit would never work? Now we're talking.
The proximity to an outside wall is really the only major requirement, and even then, the horizontal venting capability gives us plenty of flexibility in positioning. We've installed these in spots where homeowners never thought a water heater could go.
Here's another bonus: many models don't need an electrical connection for the venting system. No external power supply required means one less thing to worry about during installation and one less thing that can break down later.
And the silent operation? It's almost spooky how quiet these things are. Because there's no electric fan or blower pushing exhaust gases around, you won't hear the humming and whirring that comes with other venting systems. Just the gentle sound of hot water being made for your family.
If you're thinking about replacing an aging unit, this flexibility can be a game-changer. Check out more Options for Replacing an Aging or Obsolete Water Heater to see how a direct vent system might fit into your home's unique situation.
Installation, Maintenance, and Potential Costs
Getting a new direct vent water heater installed is like upgrading to the luxury version of hot water comfort. While these units are incredibly smart, they do need professional installation to ensure everything works perfectly. The good news? Once they're properly installed, they're built to last and won't demand much from you in terms of upkeep.
Yes, you'll invest a bit more upfront compared to basic atmospheric models, but think of it as buying peace of mind. The improved safety features, quiet operation, and installation flexibility often make that initial investment feel like money well spent.

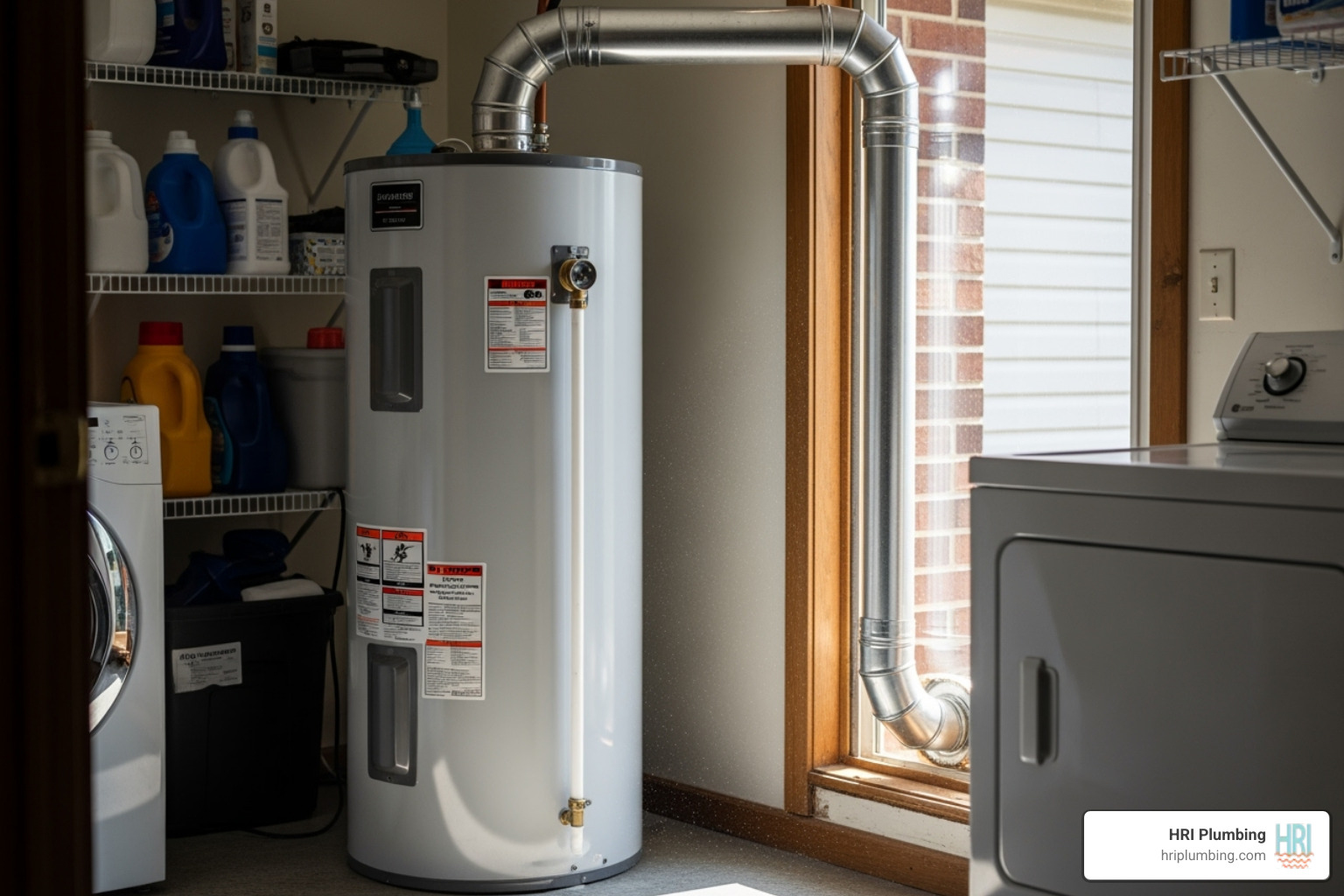

Key Installation Requirements for a Direct Vent Water Heater
The beauty of a direct vent water heater is its ability to work in homes where traditional chimney venting just isn't possible. But this flexibility comes with some specific rules we need to follow to keep everything safe and running smoothly.
The most important requirement? Your water heater needs to be close to an exterior wall. This isn't negotiable because the unit pulls all its combustion air from outside and sends the exhaust right back out through that special coaxial pipe. Most models can handle horizontal venting, which means we can run the pipe straight through your wall instead of up through your roof. Some units can even be placed up to 80 inches away from the outside wall, giving us plenty of room to work with.
We're also very careful about where that vent pipe exits your home. It needs to be positioned safely away from windows, doors, and other openings so exhaust gases can't sneak back inside. Every joint in the vent system gets properly sealed with manufacturer-approved materials – no shortcuts here.
Here's something that often surprises homeowners: many direct vent water heaters don't need to be near an electrical outlet. They use natural convection (hot air rises, remember?) instead of electric fans, which keeps things simple and quiet. Our team handles all the technical details to make sure your installation meets every code and safety requirement. Water Heater Repair & Replacement.
Routine Maintenance and Potential Drawbacks
Direct vent water heaters are pretty low-maintenance, but a little annual attention keeps them happy for years. The most important task is flushing the tank once a year to clear out sediment that settles at the bottom. Think of it as giving your water heater a good internal cleaning – it helps maintain efficiency and extends the unit's life.
We also recommend checking the anode rod every few years. This clever little component sacrifices itself to protect your tank from corrosion. In areas with hard water, it might need attention more frequently. The sealed venting system rarely needs clearing, but we'll check for any blockages during routine service calls.
Now, let's be honest about the downsides. The initial cost is higher than basic atmospheric models because you're paying for advanced technology like sealed combustion and coaxial venting. But when you consider the safety benefits and installation flexibility, most homeowners find it's worth every penny.
There's also the matter of vent length limitations. While these units are flexible, they can't vent unlimited distances. Most models max out around 90 inches of venting, though some power direct vent models can handle up to 100 feet. This rarely causes problems, but it's something we consider during planning.
The good news? These limitations are usually easy to work around with proper planning. We'll help you steer any challenges to find the perfect solution for your home. And remember, keeping an eye on sediment buildup is good practice for any water heater. Sediment Buildup and Potential Water Heater Issues.
Frequently Asked Questions
Over the years, we've answered countless questions about direct vent water heaters from homeowners just like you. These are some of the most common ones that come up during our consultations, and we're always happy to share what we've learned from installing and servicing these systems.
Is a direct vent water heater a good choice for a basement?
Absolutely! In fact, a direct vent water heater can be a perfect solution for basement installations, especially if you have a finished basement or live in a tightly sealed, energy-efficient home. Here's why we often recommend them for below-grade spaces.
Since these units draw all their combustion air directly from outside, they won't compete with your furnace, dryer, or other appliances for indoor air. This is particularly important in basements, where air circulation can be limited. You also don't have to worry about the unit pulling in potentially dusty, musty, or cold basement air for combustion – it gets fresh outdoor air instead.
The only requirement is having access to an exterior wall for the venting system. As long as your basement has an outside-facing wall, we can typically make it work beautifully. You'll get safe, efficient hot water without any impact on your indoor air quality.
Can I use a direct vent water heater with propane (LP) gas?
Yes, many direct vent water heater models are available for both natural gas and liquid propane. This flexibility is wonderful for homes that aren't connected to a natural gas line but still want the benefits and efficiency of gas water heating.
The key thing to remember is that you must always confirm the specific fuel type before purchasing and installation. A natural gas unit cannot safely run on propane without proper conversion, and vice versa. Mixing up fuel types can be dangerous and will damage the equipment.
Don't worry though – our team will make sure you get exactly the right model for your home's fuel source. We'll handle all the technical details to ensure everything is properly matched and safely installed.
What are the signs my current water heater might need replacing?
Even the most reliable water heaters eventually reach the end of their useful life. Your current unit might be sending you some signals that it's time to start shopping for a replacement. We see these warning signs regularly during our service calls.
Lukewarm water that runs out quickly is often the first hint homeowners notice. If your hot showers are getting shorter or you're constantly running out of hot water for dishes, your heater is struggling to keep up with demand.
Leaks around the base are always a red flag. Any puddles or damp spots near your water heater usually indicate a crack in the tank itself. Once the tank starts leaking, replacement is typically the only solution.
Strange noises like popping or rumbling often come from sediment buildup at the bottom of the tank. As the water heats up, this sediment rattles around and can eventually damage the tank's interior.
Rusty-colored water coming from your hot water taps suggests the inside of your tank is corroding. This reddish or brownish tint means the tank's protective lining is failing, and the unit's days are numbered.
If you're noticing any of these symptoms, it's smart to have us take a look sooner rather than later. We'll give you an honest assessment of whether repair makes sense or if replacement is the better investment. Signs You Need a New Water Heater.
Is a Direct Vent Water Heater Your Solution?
After decades of helping homeowners in Springfield and the surrounding areas, we've learned that the right water heater isn't just about hot water – it's about bringing comfort, safety, and peace of mind to your daily life. A direct vent water heater might just be the solution you've been looking for, especially if you've been wrestling with installation challenges or safety concerns.
The beauty of these systems lies in their neat simplicity. The sealed combustion design means you never have to worry about harmful gases sneaking into your home – a genuine game-changer for families who prioritize indoor air quality. The installation flexibility opens doors (literally!) to placing your water heater exactly where it makes sense for your home, not where an old chimney dictates. And that whisper-quiet operation? It's like having a polite houseguest who does their job without making a fuss.
We've found that direct vent water heaters are particularly brilliant in certain situations. If your home doesn't have a chimney, these units can transform what seemed like an impossible gas water heater installation into a straightforward project. Got a tight space like a utility closet or finished basement? Perfect – these compact units thrive in cozy quarters where traditional systems would struggle. And if you're someone who values clean indoor air above all else, the sealed combustion system eliminates any worry about combustion byproducts affecting your family's breathing space.
Every home is unique, and every family has different needs. That's why we take the time to really understand your situation before making recommendations. Whether you're dealing with an aging unit that's seen better days, planning a home renovation, or simply want to upgrade to something safer and more efficient, we're here to help you steer the options.
For expert advice and professional installation in the Springfield area, the team at HRI Plumbing provides honest, reliable service to ensure your home has the safe and efficient hot water it needs. We believe in doing the job right the first time, and we're always here when you need us. Contact us for your water heater needs in Springfield, IL.
